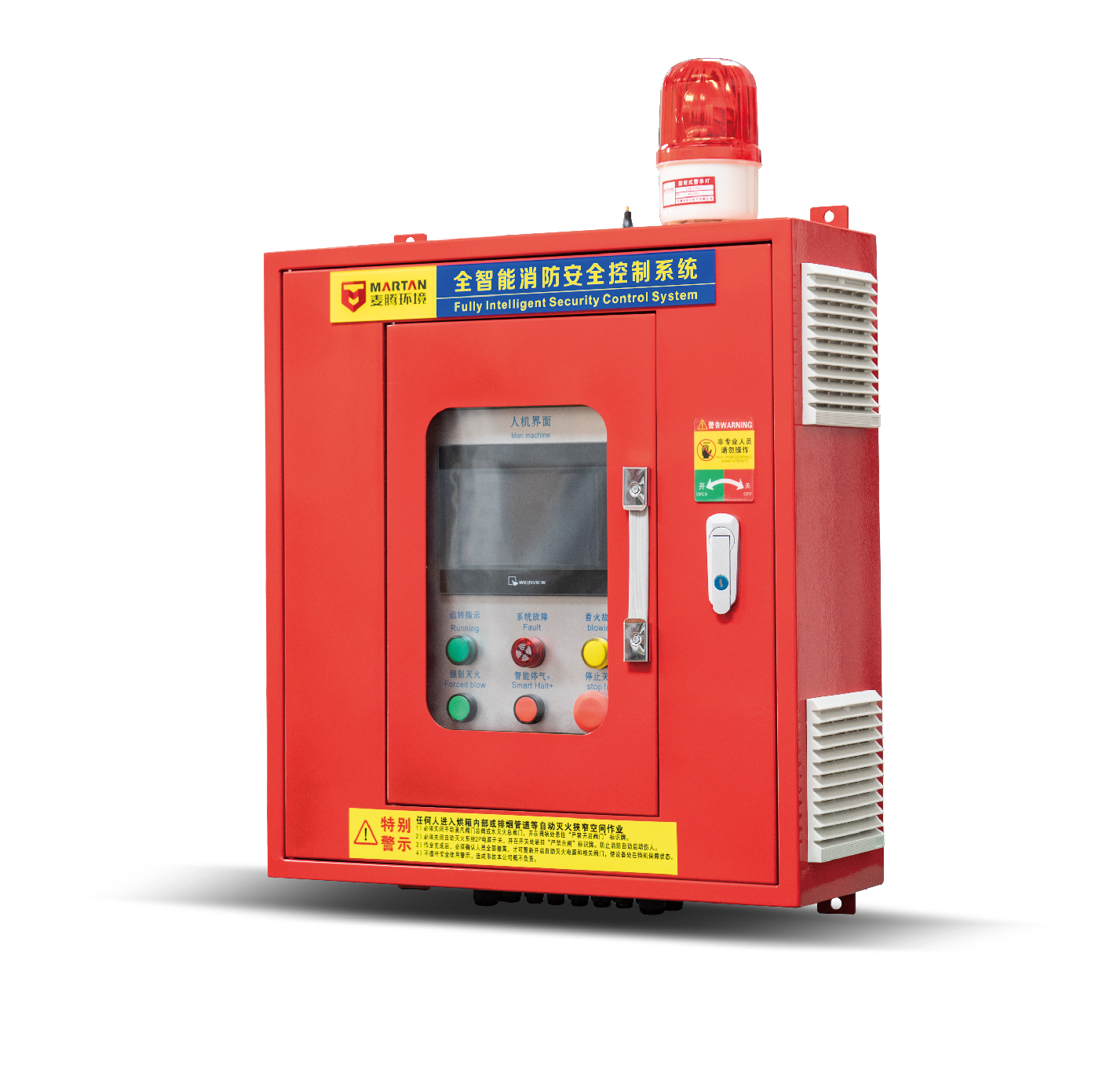

EVP全智能安防系统：多传感器协同，具备自动消防功能，还有远程监控等多样特性
EVP全智能安防系统具有电控和传感器，主要由日本三菱可编程逻辑控制器、台湾威伦人机操作界面、XF02型传感器、温度传感器、温度模块、蒸汽灭火装置组成，故障文本显示声光报警系统。
EVP fully intelligent security system with electronic control and sensors, mainly by the Japan Mitsubishi Programmable Logic Controller, Taiwan Weilun man-ma-chine operator interface,XFO2-type sensors, temperature sensors, temperature modules, steam fire extinguishing devices, fauit text display sound and light alarm system.
自动消防系统工作原理
[Principle of Operation]
XF传感器熔断或者PT温度传感器超限后(双控),将瞬时启动灭火系统，声光报警器启动，排风机循环风机停止运行，燃烧器关闭，蒸汽阀门自动打开喷射蒸汽灭火。相关管道风阀联动关闭，防爆阀打开。
After the XF sensor fuses or the PT temperature sensor exceeds the limit (dual control), the fire extinguishing system will be started instantaneously, the sound and light alarm will be activated, the exhaust fan and circulating fan will stop running, the burner will be shut down, and the steam valve will be opened automatically to spray steam to extinguish the fire. The related piping dampers are closed and the explosion-proof valves are opened.

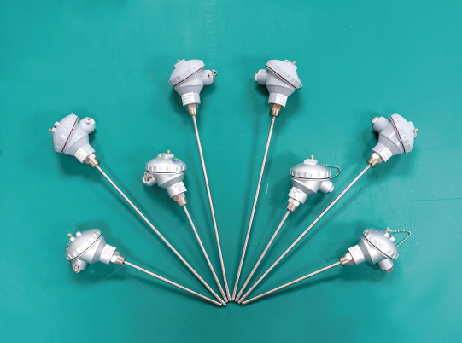

PT温度传感器
[PTTemperature Sensor]
实时监控风箱和通风管道内的实际温度，超温自动启动灭火系统警报。拥有低温断线报警，短路报警，高温监测自动启动灭火阀和着火警报。
Real time monitoring of the actual temperaturein theair box and ventlation ducts, over-temperatureautomatically start the fre extinguishing system alarm.Withlow temperature disconnection alarm, short circuit alarm, high temperature monitoring automaticactvation of fre extinguishing valve and fre alarm.

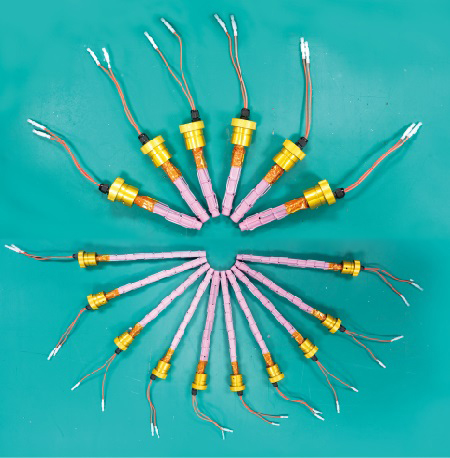

XF02型传感器
[XF02 Sensor]
此传感器能够准确的感应到明火的发生，然后传送到主界面，由主界面发出灭火指令，打开蒸汽阀门，进行灭火。探头监测到明火，自动启动灭火阀门和着火警报，灵敏度非常高。
This sensor accurately senses the occurrence of anopen fire and then transmitsit to the main interface,whichissues a fire-fighting command to open thesteam valve and extinguishthe fire.The probe monitors the open fre and automatically actvates the fireextinguishing valve and fre alarm with very highsensitvity.

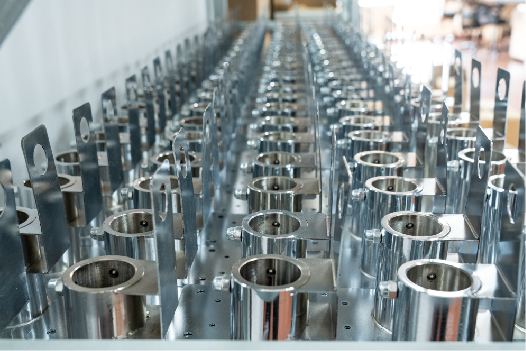

A型探头底座
[Atype Probe Base]
安装简便，采用滚珠定位，易插拔检修。电镀工艺，造型美观!
Easytoinstall with ball postioning, easyto plug and unplug access. Electroplating process, beautfulmodeling!

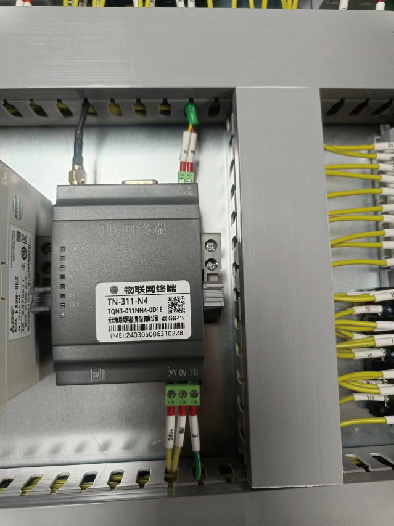

物联网模块
[Lot Module]
提供远程监控，短信报警推送，微信通知，云平台集中监控报警服务，提供5年免费服务。
Provide remote monitoring, SMS alarm push,WeChat notification, cloud platform centralized monitoring and alarm service, provide 5 yearsfree service.

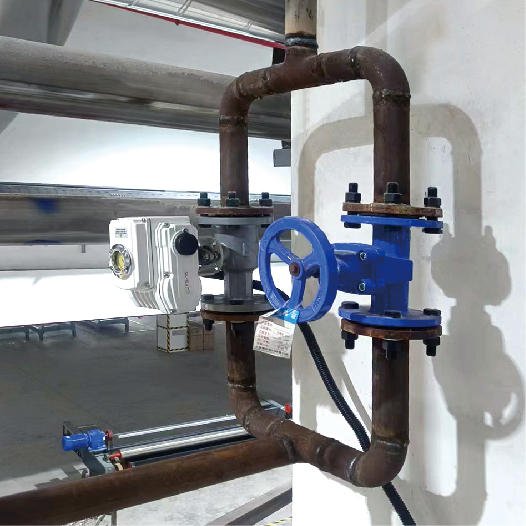

电动铸钢高温球阀
[Electric Cast Steel High Temperature Ball Valve]
超温自动启动蒸汽灭火电动阀门和声光警报。
Automatic actvation of steam extinguishing motorized valves and audible and visualalarms for over-temperature.
油烟机等远距离消防专用
[Range Hood and Other Remote FireSpecial]

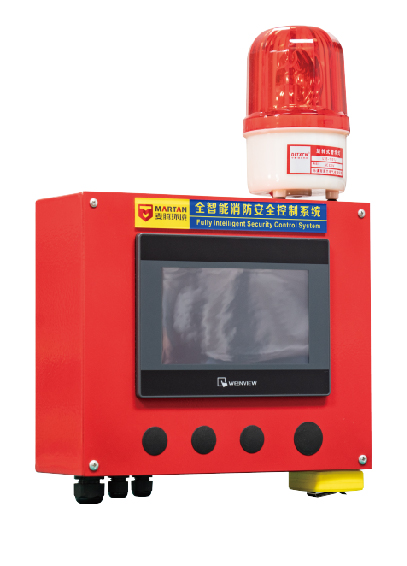

超温自动启动蒸汽灭火电动阀门和声光警报。专为远距离使用，具有声光报警，远程入机界面，可远程一键启动消防系统。方便用户观察和使用操作。可根据用户需要配备1~4套远程小电箱。
Automatic actvation of steam extinguishing motorizedvalves and audible and visual alarmsfor over-temperature.Designed for remote use, with sound and light alarm,remote man-machineinterface, can be remote one key to start the fre system. Convenient forusers to observe and use the operation. Can be equipped with 1~4 sets of remotesmall electric boxes according to user needs.
